Silicone Sink Protector OEM Guide — Compliance, MOQ, Pricing

Silicone sink protectors sit at the intersection of two audit surfaces most consumer coverage completely misses: the food-contact regulatory stack (FDA + LFGB + Prop 65 + REACH) and the sink-cavity fit tolerance procurement teams at Tier-2 retail chains actually measure on receiving-dock inspection. This guide is the engineering reality of the OEM program — cure chemistry, Shore A selection by sink material, MOQ-tier FOB pricing with tooling amortization math, and the six defect modes retail QA flags — written from inside a working Dongguan compression-molding floor, not from a consumer roundup surface. Every H2 below is a question a procurement or sourcing lead has already asked us. The answers follow the same structure we use in RFQ responses.

A silicone sink protector is a compression- or injection-molded polydimethylsiloxane sheet 5-10 mm thick, Shore A 50-70, cured under a hydraulic press at 160-200°C and post-cured 4-6 hours at 180-200°C to clear LFGB §30/31 organic volatile testing. For B2B OEM programs, MOQ 500 pieces per SKU delivers per-batch FDA 21 CFR 177.2600, LFGB, Prop 65, and REACH SVHC documentation. FOB Yantian for a standard 26 × 14 inch platinum-cure sink protector with 1-color debossed logo runs $3.85-$4.90 at 500 pieces, dropping to $2.05-$2.55 at 10,000 pieces. Realistic PO-to-US-warehouse lead is 60-85 days including 14-18 day Yantian sailing.

What is a silicone sink protector, engineered for OEM production?

A silicone sink protector is a single- or multi-cavity PDMS mat 5-10 mm thick, Shore A 50-70 durometer per ASTM D2240[^astm-d2240], compression- or injection-molded to fit a specific sink-model cavity map with drain and disposal cutouts registered to ±1.5 mm. Continuous service temperature -40°C to 230°C, tested tear strength ≥ 18 kN/m per ASTM D624, cleared to FDA 21 CFR 177.2600[^fda-177-2600] on the food-contact surface.

The consumer-facing description is “a rubbery mat to protect the sink”. The engineering description is a compression-molded PDMS elastomer sized to a specific sink OEM’s interior cavity dimensions, with corner-radius and drain-cutout tolerances tight enough that the mat seats without pooling water at the low points. That fit tolerance is what determines whether the SKU passes retail incoming QC — not surface color or logo fidelity.

Three functional layers get engineered into the same 6 mm sheet. The polymer chemistry (FDA and LFGB clearance, non-slip surface texture, thermal envelope up to 230°C). The mechanical geometry (drain cutouts, corner-radius match, edge draft angle so the mat lifts without warping). The cure system and post-cure discipline (extractables profile, yellowing resistance, tear propagation). Every OEM decision below trades between those three.

Baseline engineering spec sheet

Parameter	Standard range	Test method
Total thickness	5-10 mm (retail default 6-8 mm)	Digital caliper, 9-point sampling
Shore A hardness	50-70 (see sink-material matrix below)	ASTM D22401
Tensile strength	≥ 6.5 MPa	ASTM D412
Elongation at break	≥ 250%	ASTM D412
Tear resistance	≥ 18 kN/m	ASTM D624
Compression set (22 h @ 70°C)	≤ 25%	ASTM D395
Continuous service temperature	-40°C to 230°C	Manufacturer spec + LFGB thermal cycling
Drain-cutout registration	±1.5 mm from CAD	Optical comparator
Corner-radius fit tolerance	±1.0 mm from sink OEM spec	Physical fit check on reference sink
Cure system	Platinum (LSR) or peroxide (HCR)	Master-batch lot certificate
Cure temperature at press	160-200°C	Press log
Post-cure cycle	4-6 h @ 180-200°C	Batch oven log

Which certifications does a silicone sink protector need for retail?

The mandatory stack for Tier-2 retail programs is FDA 21 CFR 177.2600[^fda-177-2600] (US food contact), LFGB §30/31 per BfR Recommendation XV[^bfr-lfgb-xv] (EU food contact), California Prop 65 declaration (heavy metals + PFAS notice), and REACH SVHC screening under EU Regulation 1935/2004[^ec-1935-2004]. Home Depot / Wayfair / Tesco / Carrefour QA teams verify all four documents reference a specific master-batch lot from the last 6 months.

Retail auditors at the Tier-2 level do not run the tests themselves — they verify that the tests exist, that the reports are from accredited labs, and that the master-batch lot on the report matches the lot on the shipment paperwork. That traceability chain is what a working ISO 9001² quality management system produces automatically.

The four-layer certification stack

Layer 1 — FDA 21 CFR 177.2600 (US baseline). The primary US regulation for silicone and other rubber articles intended for repeated food-contact use. Tests aqueous, 8% ethanol, and n-heptane extractables against defined limits. Every US retail SKU needs this on file. Wetop tests per master-batch lot at accredited third-party labs (SGS, Intertek, TÜV, Bureau Veritas).

Layer 2 — LFGB §30/31 (EU / premium US). German Food and Feed Code sections 30 and 31, technically grounded in BfR Recommendation XV³ and framed by EU Regulation 1935/2004⁴. Tests organic volatile extractables under stricter protocols than FDA — the reason mandatory 4-6 hour post-cure exists. Any EU retail SKU needs this, and US premium retail increasingly does too.

Layer 3 — California Prop 65 declaration. California Safe Drinking Water and Toxic Enforcement Act notice covering heavy metals and PFAS. Not a formal certification — a declaration backed by test data. Wetop provides a signed declaration referencing SGS or Intertek analytical data per batch. Required on any SKU shipping into California retail regardless of national program.

Layer 4 — REACH SVHC screening (EU). European Chemicals Agency Substances of Very High Concern screening under EU Regulation 1935/2004⁴. Per-batch report from an accredited EU lab. Now accelerating in scope given the ECHA PFAS universal restriction proposal⁵.

Tier-specific additional documents

Retail tier	FDA 177.2600	LFGB §30/31	Prop 65	REACH SVHC	Additional
US mass retail ($15-25 shelf)	Required	Recommended	Required	—	—
US premium retail ($25-45 shelf)	Required	Required	Required	Recommended	—
EU retail (all tiers)	—	Required	—	Required	EU declaration of compliance
Commercial kitchen adjacent	Required	Required	Required	Recommended	NSF/ANSI 516
Children’s / infant-safe channel	Required	Required	Required	Required	CPSIA7
Amazon FBA private-label	Required	Recommended	Required	—	—

Full breakdown of the FDA-vs-LFGB decision on our FDA vs LFGB silicone decoder.

Platinum-cured or peroxide-cured silicone — which cure system for a sink protector?

Platinum-cure for EU premium retail, PFAS-free positioning, and infant-safe channels. Peroxide-cure with mandatory 4-6 hour post-cure at 180-200°C for US mass and mid-tier retail at $18-35 shelf price — functionally equivalent and 15-22% lower per-unit cost, if the post-cure step is documented per batch. Sink protectors face lower peak thermal duty than baking mats (typical exposure is 90-140°C from hot pot bottoms, not 230°C oven cycles), so yellowing and compression-set risk dominate over out-gassing risk.

Both cure systems use polydimethylsiloxane as the base polymer. The catalyst that triggers crosslinking diverges — platinum-group metal complex for platinum-cure, organic peroxide (typically dicumyl or 2,4-dichlorobenzoyl peroxide) for peroxide-cure — and that choice cascades into byproduct chemistry, PFAS process-aid history, per-unit cost, and regulatory positioning.

For sink protectors specifically, the cure decision has an extra dimension baking mats don’t have: long-duration daylight and hard-water exposure. A sink protector sits in a wet, sometimes UV-exposed environment for 2-4 years of service life. Under-post-cured peroxide-cure will bloom (surface migration of residual byproducts) and yellow under those conditions — the actual mechanism behind “my silicone mat went yellow” complaints. Full post-cure discipline eliminates this. See our full breakdown in the platinum-vs-peroxide-cured silicone decision guide.

Cost delta at sink protector MOQ tiers

Cure system	500 pcs (26×14”)	1,000 pcs	5,000 pcs	10,000 pcs
Peroxide-cure (post-cured, PFAS-free process aid verified)	$3.15-$4.00	$2.55-$3.20	$1.95-$2.45	$1.70-$2.15
Platinum-cure (LSR or premium HCR)	$3.85-$4.90	$3.10-$3.90	$2.35-$2.95	$2.05-$2.55
Delta	+18-22%	+18-22%	+18-20%	+18-20%

Numbers are FOB Yantian, Q3 2026 benchmarks, standard 26 × 14 inch mat with 1-color debossed logo, PDMS at Shore A 55-65, 6-8 mm thickness, standard drain-cutout geometry. Custom Pantone-matched master-batch adds $0.10-$0.18 per unit. 4C sublimation printing on the surface adds $0.06-$0.12 per unit.

Shore A hardness by sink material — the durometer decision matrix

Shore A hardness maps directly to sink substrate. Stainless steel: 55-65 (grip without cushion collapse under cast iron). Fireclay: 60-70 (harder edges resist chip transfer). Composite granite (Silgranit, Neoroc): 50-60 (softer profile protects the resin-composite surface). Porcelain-enamel over cast iron: 55-65 with rounded-edge geometry. Every hardness value is measured per ASTM D2240[^astm-d2240] and logged on the batch certificate.

Shore A durometer is the single most-often-mis-specified parameter on inbound RFQs. Procurement teams sometimes request Shore A 40-45 assuming “softer is safer” — which introduces compression-set failure under heavy cookware in ~18 months. Or request Shore A 75-80 assuming “harder is more durable” — which telegraphs into ceramic-glaze micro-scratches on porcelain sinks. The correct answer is sink-material-specific.

Shore A hardness decision matrix by sink type

Sink material	Recommended Shore A	Compression set target	Rationale
Stainless steel (Kraus KHU / KWU, Ruvati Roma, Elkay Crosstown, Kohler Strive)	55-65	≤ 25% (22 h @ 70°C)	Grip without cushion collapse under heavy cast iron
Fireclay (Kohler Whitehaven, Ruvati Fiamma, Vigo Matthias)	60-70	≤ 22%	Harder edges resist chip transfer at cavity walls
Composite granite (Blanco Silgranit, Kohler Neoroc, Karran QT/QU)	50-60	≤ 28%	Softer durometer prevents surface micro-abrasion on resin composite
Porcelain-enamel over cast iron (Kohler Iron, Elkay Iron)	55-65	≤ 25%	Rounded edge geometry mandatory to prevent enamel edge chipping
Copper (specialty channel)	50-60	≤ 28%	Softer profile prevents patina disturbance
Concrete (custom / commercial)	60-70	≤ 22%	Harder profile for high-cycle commercial use

Wetop typically ships single-cavity SKUs at Shore A 60 ±5 as the retail default. Cavity-specific durometer targeting (different Shore A per sink model within a program) is available on OEM orders of 2,000 pieces or more. Full sink-model cavity fit detail on the sink grid fit guide for Kraus, Ruvati, Blanco.

MOQ tiers, tooling amortization, and FOB Yantian pricing

Wetop's MOQ is 500 pieces per SKU — the minimum that supports per-batch third-party test economics (FDA + LFGB + Prop 65 + REACH combined ~$1,100-$1,600). FOB Yantian Q3 2026 benchmarks for a standard 26 × 14 inch platinum-cure sink protector with 1-color debossed logo: 500 pcs $3.85-$4.90 / 1,000 pcs $3.10-$3.90 / 5,000 pcs $2.35-$2.95 / 10,000 pcs $2.05-$2.55. New tooling for a custom sink-model cavity runs $3,800-$6,200 amortized over first-order volume.

The MOQ math is not arbitrary. Below 500 pieces per SKU, per-batch third-party test cost dominates per-unit price to the point where the SKU can’t hit a retail-viable landed cost. Above 500 pieces, test cost amortizes to $2.20-$3.20 per piece and drops fast — 5,000 pieces amortizes to $0.22-$0.32 per piece.

Full MOQ-tier FOB Yantian pricing (26 × 14 inch standard sink protector, Q3 2026)

Volume tier	Peroxide-cure post-cured	Platinum-cure LSR/HCR	4C printed surface add	Pantone master-batch add
500 pcs	$3.15-$4.00	$3.85-$4.90	+$0.12-$0.18	+$0.14-$0.20
1,000 pcs	$2.55-$3.20	$3.10-$3.90	+$0.10-$0.15	+$0.12-$0.18
2,500 pcs	$2.15-$2.75	$2.65-$3.35	+$0.08-$0.12	+$0.11-$0.16
5,000 pcs	$1.95-$2.45	$2.35-$2.95	+$0.07-$0.11	+$0.10-$0.14
10,000 pcs	$1.70-$2.15	$2.05-$2.55	+$0.06-$0.10	+$0.08-$0.12
20,000+ pcs	$1.50-$1.90	$1.80-$2.25	Quote	Quote

Prices exclude retail packaging (a typical color header card with clamshell runs $0.28-$0.55 per unit fully assembled), certification fees for a specific retailer or regulatory scope beyond the standard four-layer stack, and destination-country duties.

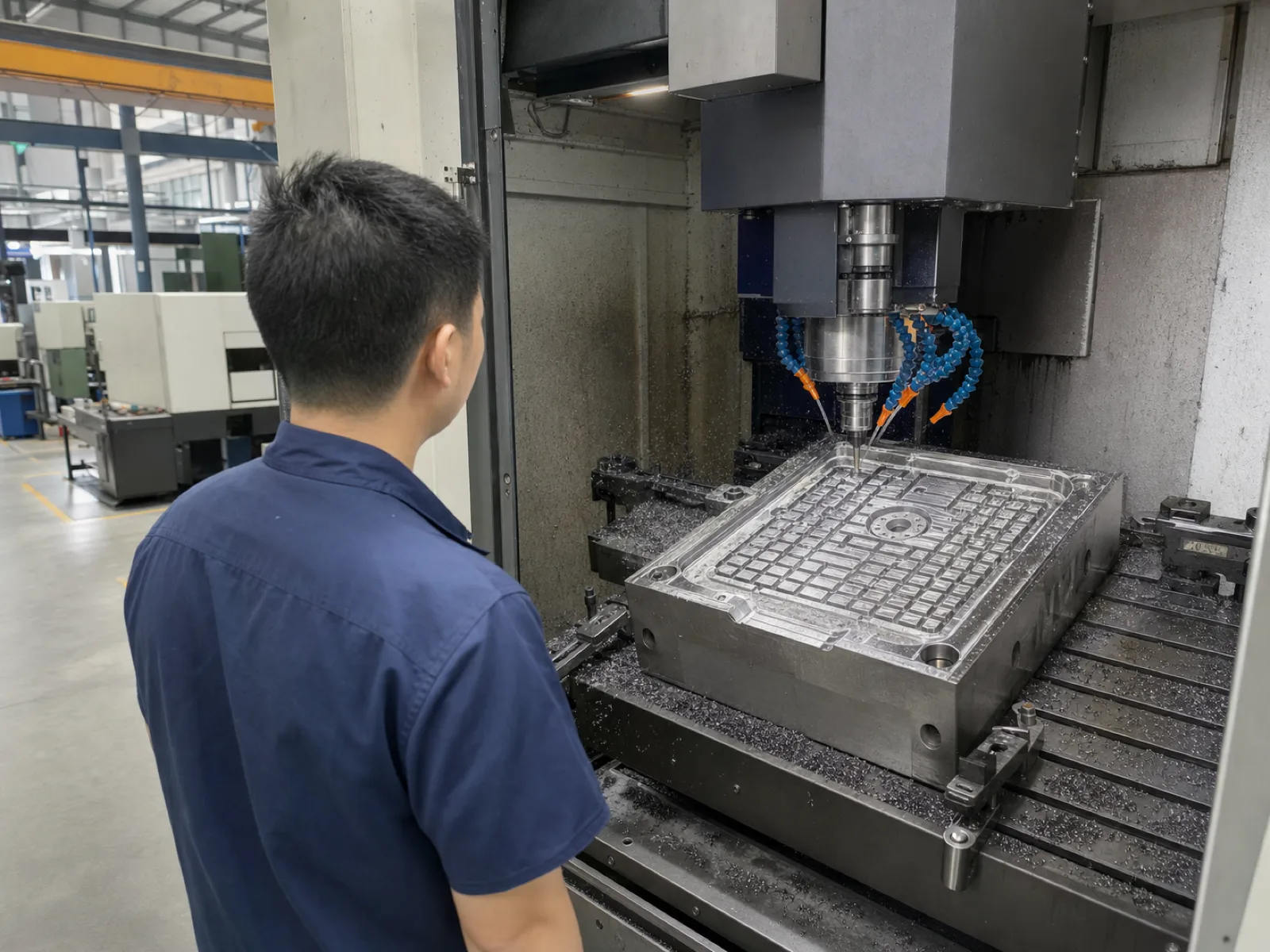

Tooling investment for custom sink-model cavities

Cavity complexity	Tooling cost	Amortization example (first 5,000 pcs)
Simple rectangular (single drain, no disposal cutout)	$3,800-$4,400	+$0.76-$0.88 per piece
Standard drop-in (single drain + disposal cutout, standard corner radius)	$4,400-$5,200	+$0.88-$1.04 per piece
Complex undermount (offset drain, dual disposal, tight corner radius)	$5,200-$6,200	+$1.04-$1.24 per piece
Dual-basin split	$6,200-$8,500	+$1.24-$1.70 per piece

Tooling is a one-time cost that Wetop typically amortizes into a slightly higher per-unit price on the first order rather than billing as a separate line, then drops unit price on re-orders. Full pricing structure logic on the silicone OEM pricing structure guide. The MOQ economics logic in full on the real factory MOQ math guide.

Lead time from RFQ to warehouse — what’s realistic

Realistic lead is 60-85 days from PO to US warehouse receipt. Sample: 10-15 days on existing tooling, 22-30 days if new mold cut required. Production: 25-35 days for 5,000-20,000 pieces after PO and 30% deposit. Yantian sailing: 14-18 days US West Coast, 25-32 days US East Coast, 30-38 days Northern Europe. Suppliers quoting 30-day cold-start-to-warehouse totals are compressing a step — usually post-cure or AQL pre-shipment inspection.

Lead-time compression is the most common RFQ-response tactic worth interrogating. The three places suppliers cut corners on silicone sink protectors specifically:

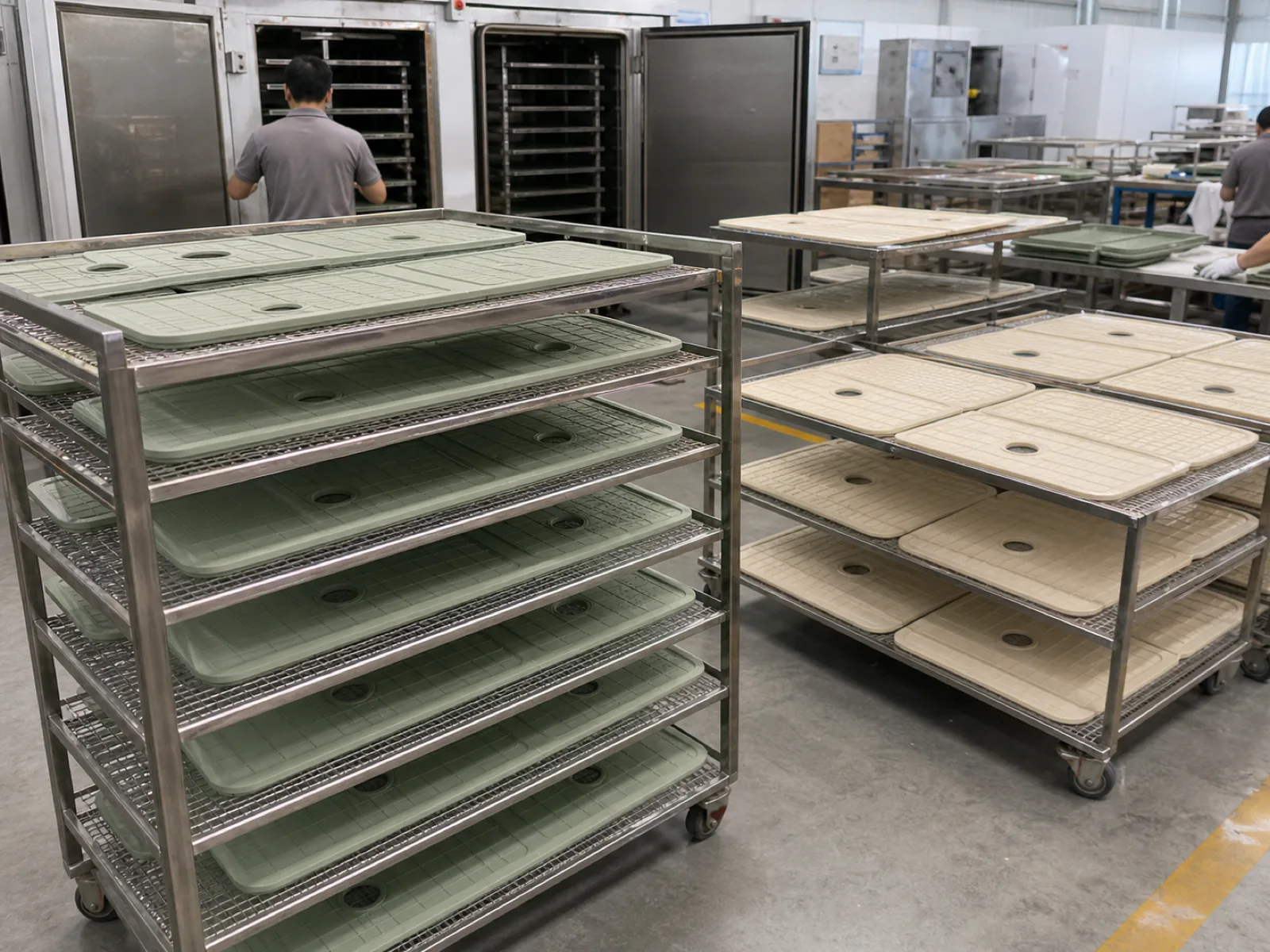

1. Skip or shorten post-cure. 4-6 hours of oven time at 180-200°C per batch is the LFGB §30/31 compliance step and the yellowing / blooming prevention step. Skipping saves ~4-6 hours per batch and ships product that fails EU premium audit and yellows on the retail shelf within 60 days.
2. Skip drain-cutout registration inspection. ±1.5 mm cutout registration to CAD is what determines fit on the actual sink. Skipping the optical-comparator check saves ~2 hours per batch and creates the “mat won’t seat” return complaints downstream.
3. Skip pre-shipment AQL inspection. ISO 2859-1⁸ AQL 1.5 sampling on a 5,000-piece batch takes ~4-8 hours. Skipping saves the inspection cost and creates the defect complaints on receiving dock.

Full timeline framework on the MOQ and lead time on silicone OEM guide.

Full RFQ-to-shipment workflow at Wetop

Stage	Duration	Deliverables	Approval gate
1. RFQ receipt + engineering review	1-2 business days	Spec confirmation, cure recommendation, Shore A recommendation by sink model, price bracket	—
2. Sample (existing tooling)	10-15 days	Physical sample + master-batch cert + Shore A + drain-fit check	Sample approval + PO
2b. Sample (new tooling cut)	22-30 days	Tooling drawing + first-article inspection report + sample	Tooling + sample approval
3. PO + 30% deposit + material procurement	5-10 days	Master-batch purchase, receiving QC	—

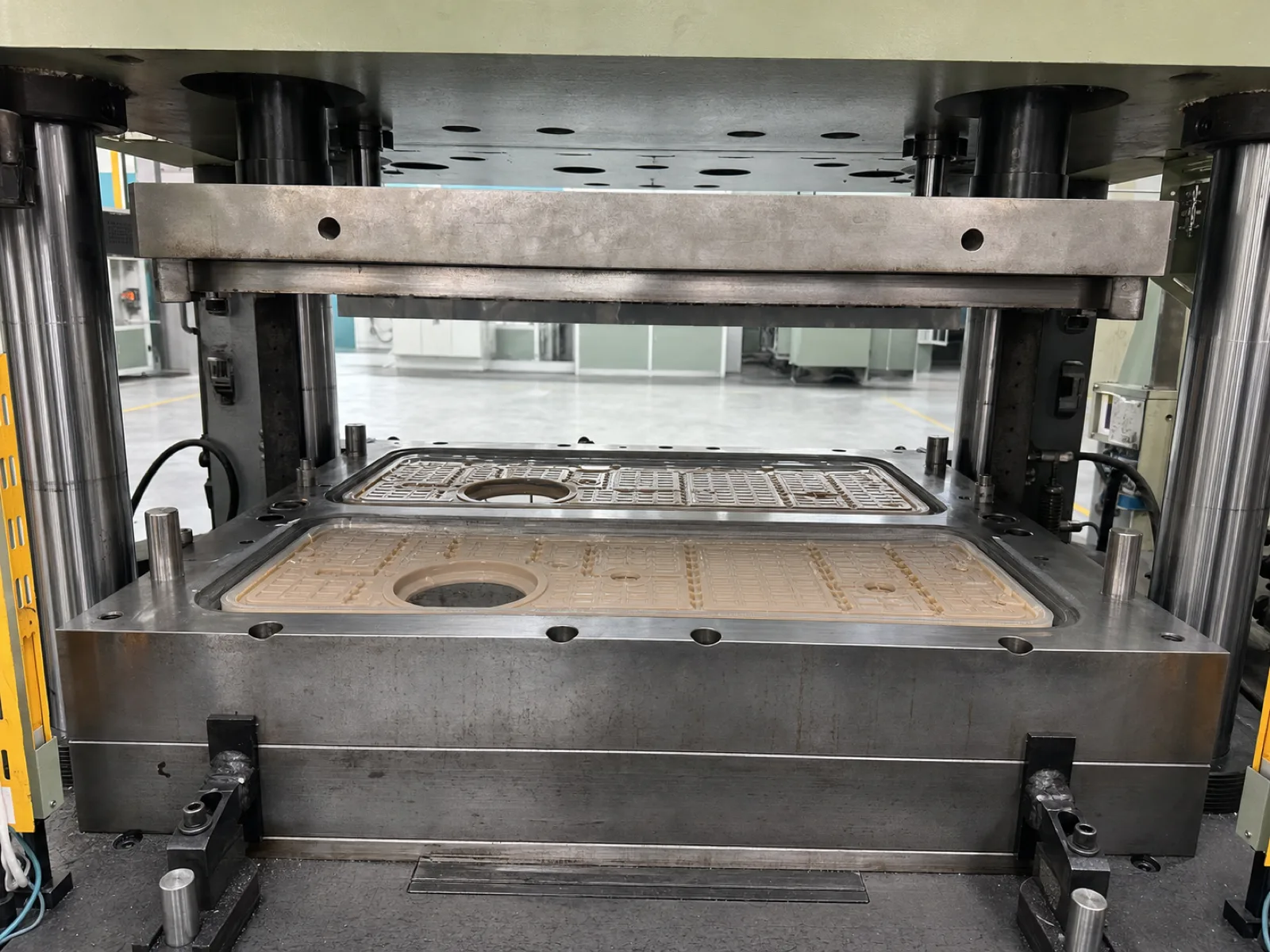

4. Production	25-35 days	Compression molding + post-cure + secondary process + retail packaging	—
5. In-process QC + AQL 1.5 pre-shipment	+3-5 days (overlaps)	FDA + LFGB + Prop 65 + REACH reports, PFAS non-detect, AQL report	Buyer sign-off
6. 70% balance + shipping documentation	2-3 days	Commercial invoice, packing list, B/L, COO, MSDS	—
7. Yantian to destination sailing	14-38 days	On-board notification, tracking	—
Total realistic	60-85 days

Factory audit checklist — what Tier-2 retail buyers actually verify

The retail-audit checklist reduces to six documents plus one video verification. ISO 9001[^iso-9001] certificate with current validity and silicone-molding scope; FDA + LFGB + Prop 65 + REACH reports referencing a master-batch lot from the last 6 months; post-cure log for that same batch; factory production video showing presses and post-cure ovens in use; PFAS non-detect analysis per batch; business + export license copies matching the trade partner on commercial documents. A supplier resisting any of these is answering the audit question.

Consumer-facing coverage of silicone sink protectors obsesses over “how to spot a good product”. Tier-2 retail QA obsesses over “how to verify the factory’s process discipline”. The latter is what determines whether the SKU passes retailer receiving-dock inspection in 90 days.

The six-document audit stack

1. ISO 9001:2015 certificate — current validity date, silicone molding in scope, issued by SGS, TÜV, Bureau Veritas, DNV, or DEKRA. Verify against the certification body’s public register.
2. FDA 21 CFR 177.2600 + LFGB §30/31 + Prop 65 + REACH reports — referencing a specific master-batch lot from production in the last 6 months. Reports from accredited third-party labs. Quantitative extractables values, not just pass/fail.
3. Post-cure cycle log — batch temperature-time record from oven PLC or manual logbook, 180-200°C for 4-6 hours documented, retained for 36 months minimum per ISO 9001.
4. Factory production video / photos — actual compression presses and post-cure ovens in use, not stock footage. Wetop shares 2-3 minute walk-through video on request under NDA.
5. PFAS non-detect analysis — per-batch report at ppb detection limits from an accredited lab. Accelerating requirement given the ECHA PFAS restriction proposal⁵.
6. Business license + export license copies — verify legal entity name matches the trade partner on commercial documents. Guard against factory-vs-trading-company confusion.

Full sourcing-verification framework on the sourcing silicone factory checklist.

CTQ inspection points — the six defect modes on silicone sink protectors

Six defect modes account for ~85% of retail return complaints. Drain-cutout misalignment > ±1.5 mm, corner curl from thermal shock, edge fiberglass exposure on reinforced SKUs, Shore A drift > ±5 durometer per ASTM D2240[^astm-d2240], surface yellowing from UV or under-post-cure blooming, and tear propagation < 18 kN/m per ASTM D624. All six are catchable at AQL 1.5 pre-shipment inspection per ISO 2859-1[^iso-2859-1] sampling.

The six defect modes catalogued

Defect 1 — Drain-cutout misalignment. Cutout position drifts > ±1.5 mm from CAD. Mat won’t seat over the drain; water pools. Cause: tool wear, mesh drift during lay-up, or thermal expansion during cure. Detection: optical comparator on 5-point sampling per batch. Zero-tolerance beyond spec.

Defect 2 — Corner curl from thermal shock. Corners lift off the sink surface. Cause: cool-down too fast (mold opened before core cooled) or unbalanced silicone volume distribution. Detection: 24-hour flatness check on a granite surface plate against a reference cavity; deviation ≤ 3 mm across the mat diagonal.

Defect 3 — Edge fiberglass exposure (reinforced SKUs). Silicone doesn’t fully wrap the mesh at the mat edge; fiberglass fibers protrude. Cause: under-viscosity gum, compression cycle too fast, mesh cut oversize. Detection: visual + tactile at 100% of inspection points. Zero tolerance.

Defect 4 — Shore A hardness drift. Durometer drifts > ±5 from spec. Cushion feel wrong. Cause: master-batch inconsistency between lots, cure time drift, temperature variance. Detection: ASTM D2240¹ durometer at 5 points per mat, statistical process control chart across batch.

Defect 5 — Surface yellowing or blooming. Mat looks yellowed or has a white surface haze out of the box. Cause: under-post-cure (residual peroxide byproduct migration), pigment incompatibility, or UV exposure during storage. Detection: D65 daylight-simulation light-box color check; ΔE ≤ 2 against approved sample.

Defect 6 — Tear propagation below spec. Small edge nick propagates into a full tear under cast iron cookware. Cause: under-cure, contaminated master-batch, or wrong Shore A / tear resistance trade-off in polymer selection. Detection: destructive tear test per ASTM D624 on samples; ≥ 18 kN/m required. Fails first-drop test with 12 lb cast iron pan otherwise.

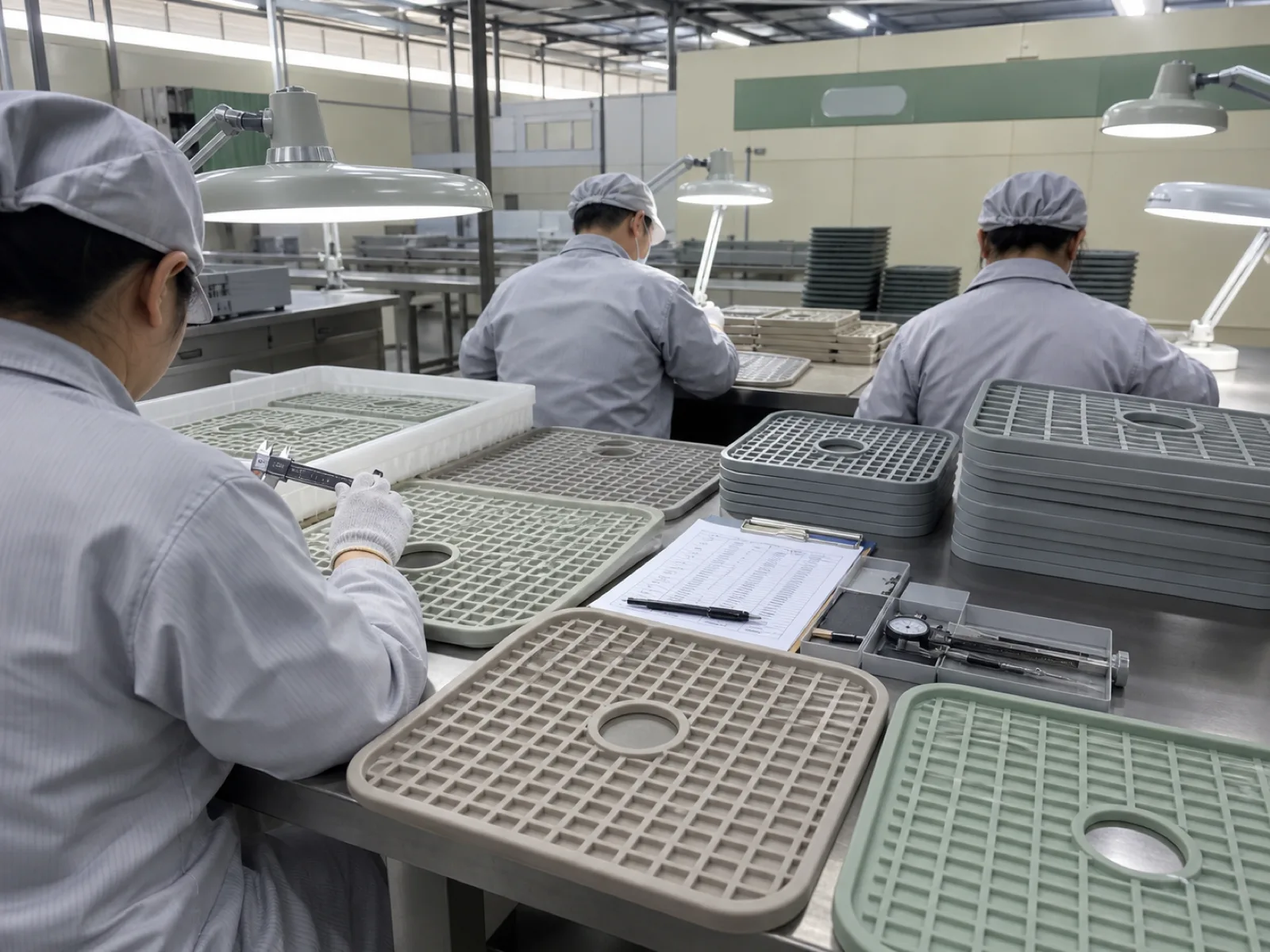

Pre-shipment inspection deliverables

Every Wetop batch ships with a pre-shipment inspection report covering AQL 1.5 sampling per ISO 2859-1⁸, drain-cutout registration check, Shore A durometer check per ASTM D2240¹, visual inspection log, tear-test destructive sample, FDA + LFGB + Prop 65 + REACH reports referencing the master-batch lot, PFAS non-detect analysis, and the post-cure oven log for the batch. Buyers running third-party pre-shipment inspection via SGS, Bureau Veritas, or their own QC team can arrange access at any point in the production timeline.

Private-label vs OEM vs ODM — decision matrix for sink protectors

The three sourcing models differ by documentation depth and design ownership. Private-label: our stock tooling library (~40 sink models), your logo. OEM: your CAD or sink-model spec, we cut new tooling, you own the cavity design. ODM: we develop the SKU from a target-tier brief, you license or purchase. Wetop runs all three at MOQ 500. Choose by whether the retail differentiation strategy requires cavity-level exclusivity.

Decision matrix by program archetype

Program type	Private-label	OEM	ODM
Design ownership	Factory (Wetop library)	Buyer (you)	Shared / licensed
Tooling cost	$0 (existing library)	$3,800-$6,200	$0 (shared library) or licensed
Time to first sample	10-15 days	22-30 days (tooling cut)	10-15 days
Best for	Fast-launch retail SKUs, Amazon private-label	Differentiated retail line with sink-model exclusivity	New brands, category test, limited-run
MOQ	500 pcs	500 pcs	500-1,000 pcs
Cavity exclusivity	No (shared across programs)	Yes (buyer owns tooling)	Negotiated
Retail differentiation ceiling	Logo + color + hardness	Full cavity + logo + color + template	Full cavity + brand narrative

Wetop’s stock sink-protector tooling library covers ~40 sink models across Kraus (KHU / KWU / KWT series), Ruvati (Roma / Terraza / Nesta), Blanco (Precis / Silgranit), Kohler (Strive / Vault / Whitehaven), Elkay (Crosstown / Quartz Classic), VIGO (Ludlow / Matthias), Houzer (Contempo), and Karran (QT / QU) — all at MOQ 500 with debossed or printed logo. Full workflow detail on customize silicone logo — deboss, print, or laser and the private-label silicone kitchen products guide.

What Wetop OEMs on silicone sink protectors

Wetop runs silicone sink protector programs at 500-piece MOQ per SKU on both cure systems from a 7,500 m² founder-led Dongguan floor. Platinum-cure LSR for EU premium and infant-safe channels. Post-cured peroxide-cure HCR for US Tier-2 retail at $18-35 shelf price. Per-batch FDA 21 CFR 177.2600[^fda-177-2600] + LFGB §30/31 + Prop 65 declaration + REACH SVHC + PFAS non-detect included in every quote. FOB Yantian pricing published above.

Program defaults:

• Platinum-cure LSR / premium HCR — for EU premium retail, PFAS-free marketing positioning, infant-safe channel, and multi-year brand programs where regulatory-drift insurance matters over the SKU life.
• Post-cured peroxide-cure HCR — for US mass and mid-tier retail programs at $18-35 shelf price, with PFAS-free process aids verified per batch and mandatory 4-6 hour post-cure at 180-200°C logged on every lot.

Stock tooling library covers ~40 drop-in and undermount sink models at MOQ 500 with private-label logo. Custom tooling for OEM cavity work at $3,800-$6,200 amortized against first order.

Sourcing a silicone sink protector program? Email inquiry@wetopsilicone.com with your target retail tier, target sink models (or ask for our library list), preferred cure system (or ask for recommendation), and target volume — we return within 2 business days with a cure recommendation, Shore A recommendation per sink model, per-batch documentation packet outline, and price brackets at MOQ 500 / 1,000 / 5,000 / 10,000. Mutual NDA available at our NDA page. Full manufacturing detail on the capabilities page; anonymized program archetypes at case studies; direct engineering contact via the contact page.

Footnotes

1. ASTM International. ASTM D2240-15 — Standard Test Method for Rubber Property—Durometer Hardness. https://www.astm.org/d2240-15r21.html — the Shore A hardness measurement standard. ↩ ↩² ↩³

2. International Organization for Standardization. ISO 9001:2015 — Quality Management Systems — Requirements. https://www.iso.org/standard/62085.html — the quality management standard Wetop is certified against. ↩

3. German Federal Institute for Risk Assessment (BfR). Recommendation XV — Silicones. https://www.bfr.bund.de/cm/349/xv-silicones.pdf — the technical standard behind LFGB §30/31 organic volatile testing for food-contact silicone. ↩

4. European Parliament and Council. Regulation (EC) No 1935/2004 — Materials intended to come into contact with food. https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=CELEX%3A02004R1935-20090807 — the EU framework regulation for food-contact materials. ↩ ↩²

5. European Chemicals Agency. PFAS Universal Restriction Proposal. https://echa.europa.eu/hot-topics/perfluoroalkyl-chemicals-pfas — the regulatory action driving PFAS-free specification adoption. ↩ ↩²

6. NSF International / ANSI. NSF/ANSI 51 — Food Equipment Materials. https://www.nsf.org/consumer-resources/what-is-nsf-certification/food-safety-certification — occasionally required for commercial-kitchen adjacent channels. ↩

7. US Consumer Product Safety Commission. CPSIA — Consumer Product Safety Improvement Act. https://www.cpsc.gov/Regulations-Laws—Standards/Statutes/The-Consumer-Product-Safety-Improvement-Act — the US consumer product safety framework for children’s-tier programs. ↩

8. International Organization for Standardization. ISO 2859-1:1999 — Sampling procedures for inspection by attributes. https://www.iso.org/standard/1141.html — the sampling standard behind AQL 1.5 pre-shipment inspection. ↩ ↩²
